Self Regulating Cables

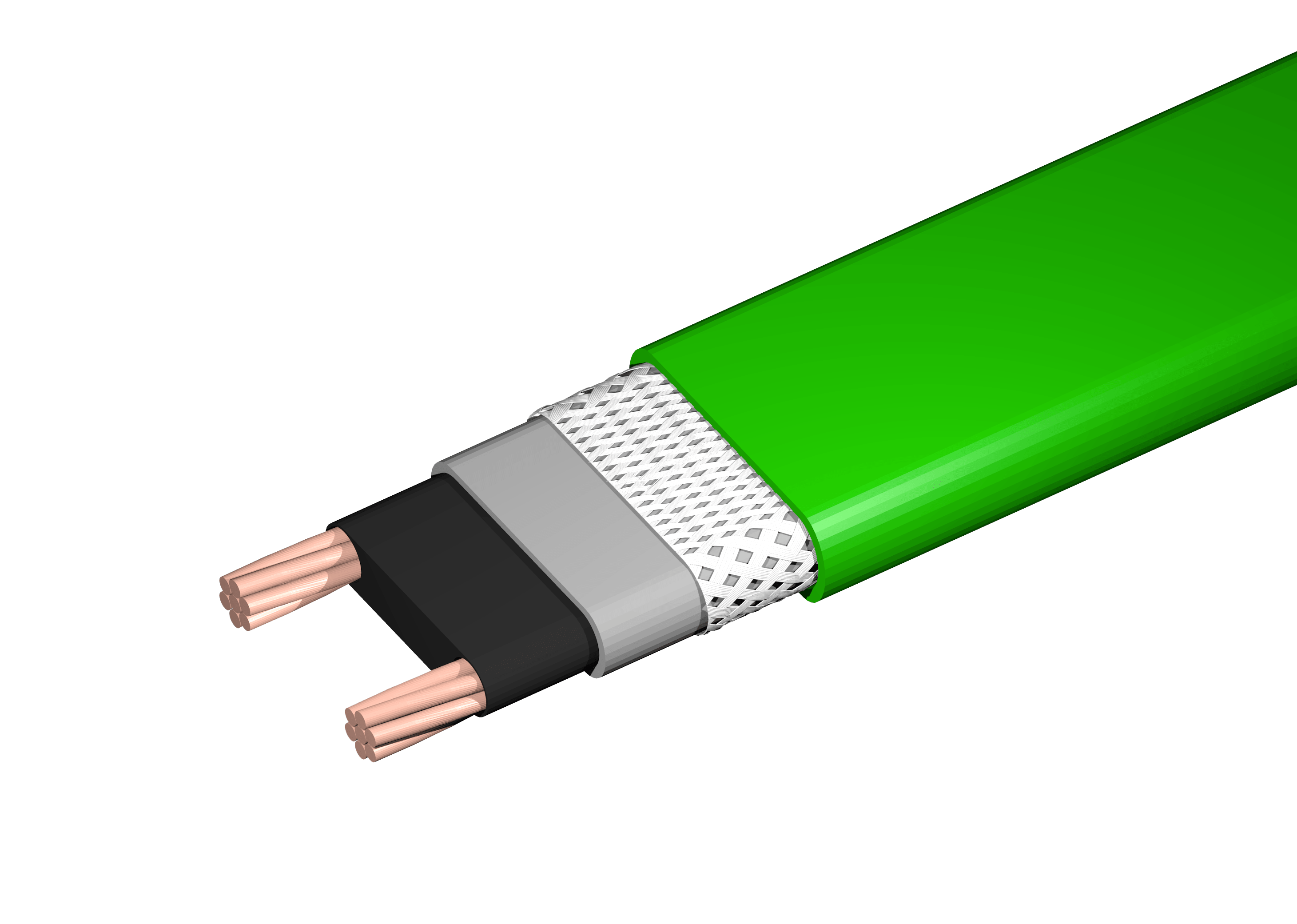

PSR-series
PSR-series is thin and compact self-regulating heating cable designed for private use. Suitable for pipe frost-protection and temperature maintance at residential areas.
Voltage
110 – 270 V~
Power Output
10, 17, 26, 33 W/m
Max. maintaince temp.
65°C
Max. intermittent temp.
85°C
Outer sheath
Modified polyolefin (-CR)
Flouropolymer (-CT)
Flouropolymer (-CT)
Conductor square
0.5 mm2
Dimensions
5.3 x 8.1 mm (-CR)
4.9 x 7.7 mm (-CT)
4.9 x 7.7 mm (-CT)
Temperature class
T6

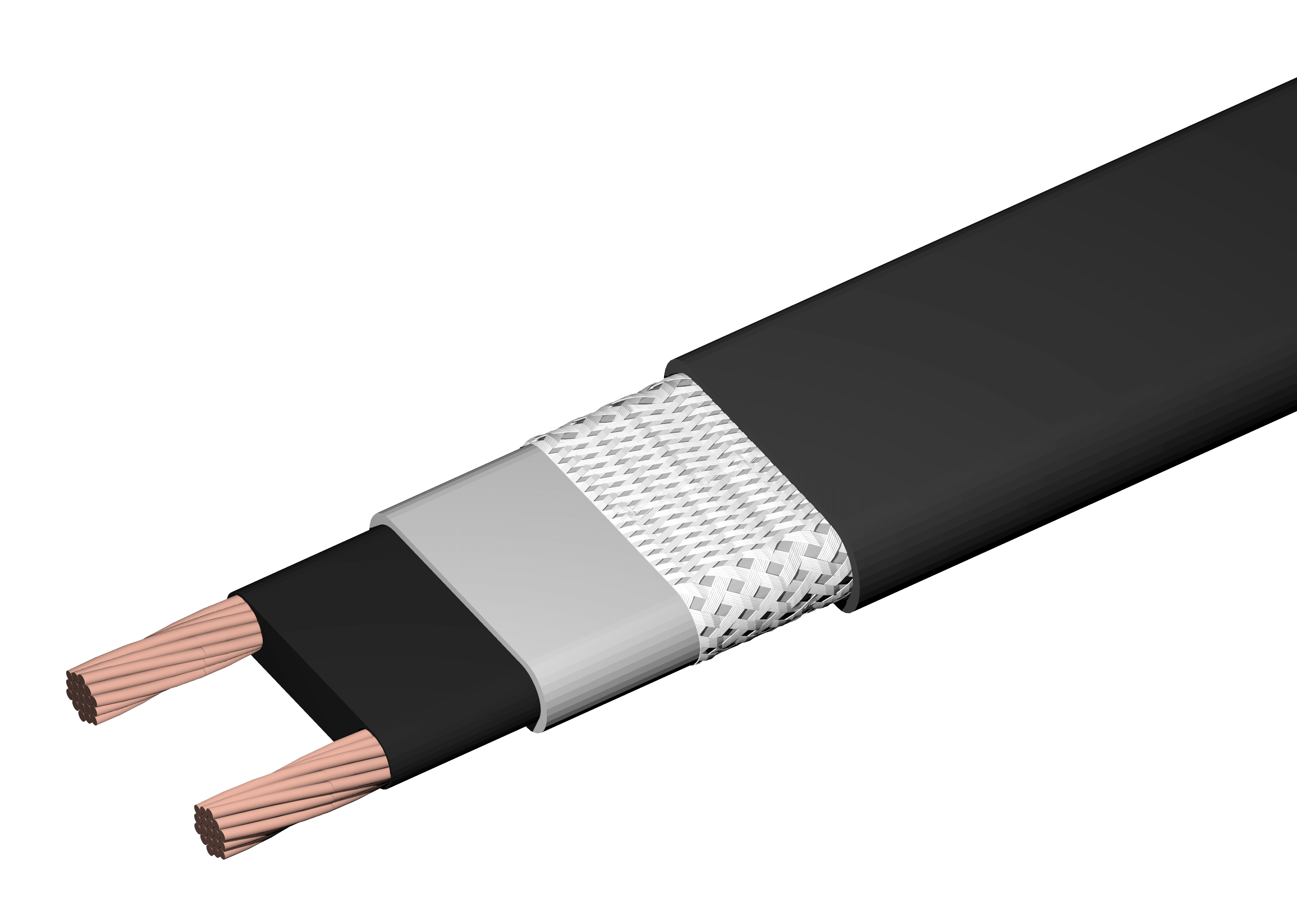

LSR-series
LSR-series self-regulating heating cable provides a solution for pipe, vessel, valve anti-frost protection and temperature maintaince, as well as for roof and gutter de-icing. Suitable for residential and industrial areas.
Voltage
110 – 270 V~
Power Output
10, 17, 26, 33, 40 W/m
Max. maintaince temp.
65°C
Max. intermittent temp.
85°C (1000 hours)
Outer sheath
Modified polyolefin (-CR)
Flouropolymer (-CT)
Flouropolymer (-CT)
Conductor square
1.3 mm2
Dimensions
5.6 x 11.9 mm (-CR)
5.0 x 11.5 mm (-CT)
5.0 x 11.5 mm (-CT)
Temperature class
T6

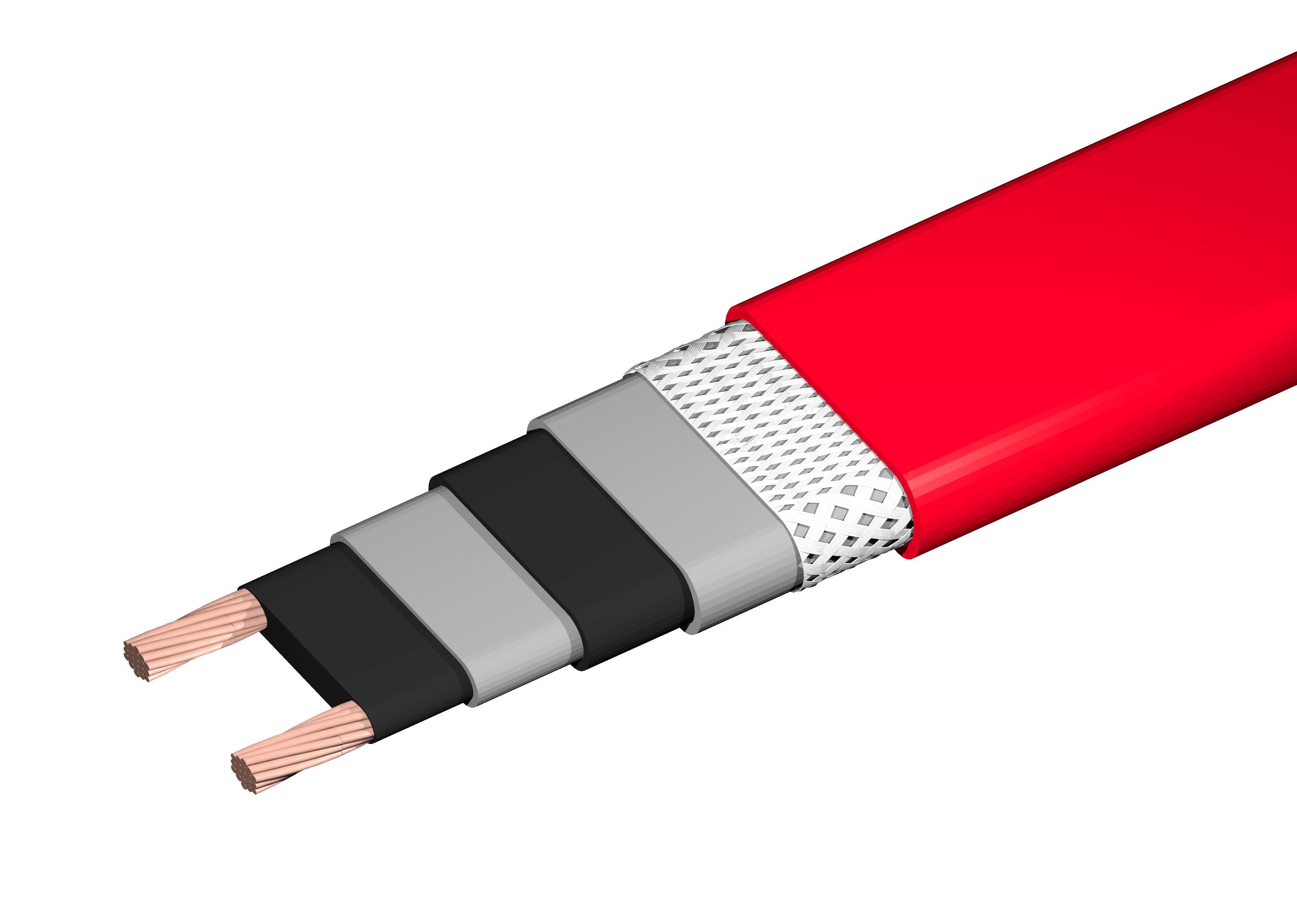

MSR-series
MSR-series self-regulating heating cable provides a solution for pipe, vessel, valve, tank temperature maintaince and freeze-protection. Maximal intermittent temperature up to 130°C. Double inner insulation layer.
Voltage
110 – 270 V~
Power Output
10, 17, 26, 33, 40, 50, 65 W/m
Max. maintaince temp.
110°C
Max. intermittent temp.
130°C (1000 hours)
Outer sheath
Modified polyolefin (-CR)
Flouropolymer (-CT)
Flouropolymer (-CT)
Conductor square
1.3 mm2
Dimensions
5.8 x 13.7 mm (-CR)
4.6 x 12.9 mm (-CT)
4.6 x 12.9 mm (-CT)
Temperature class
T6

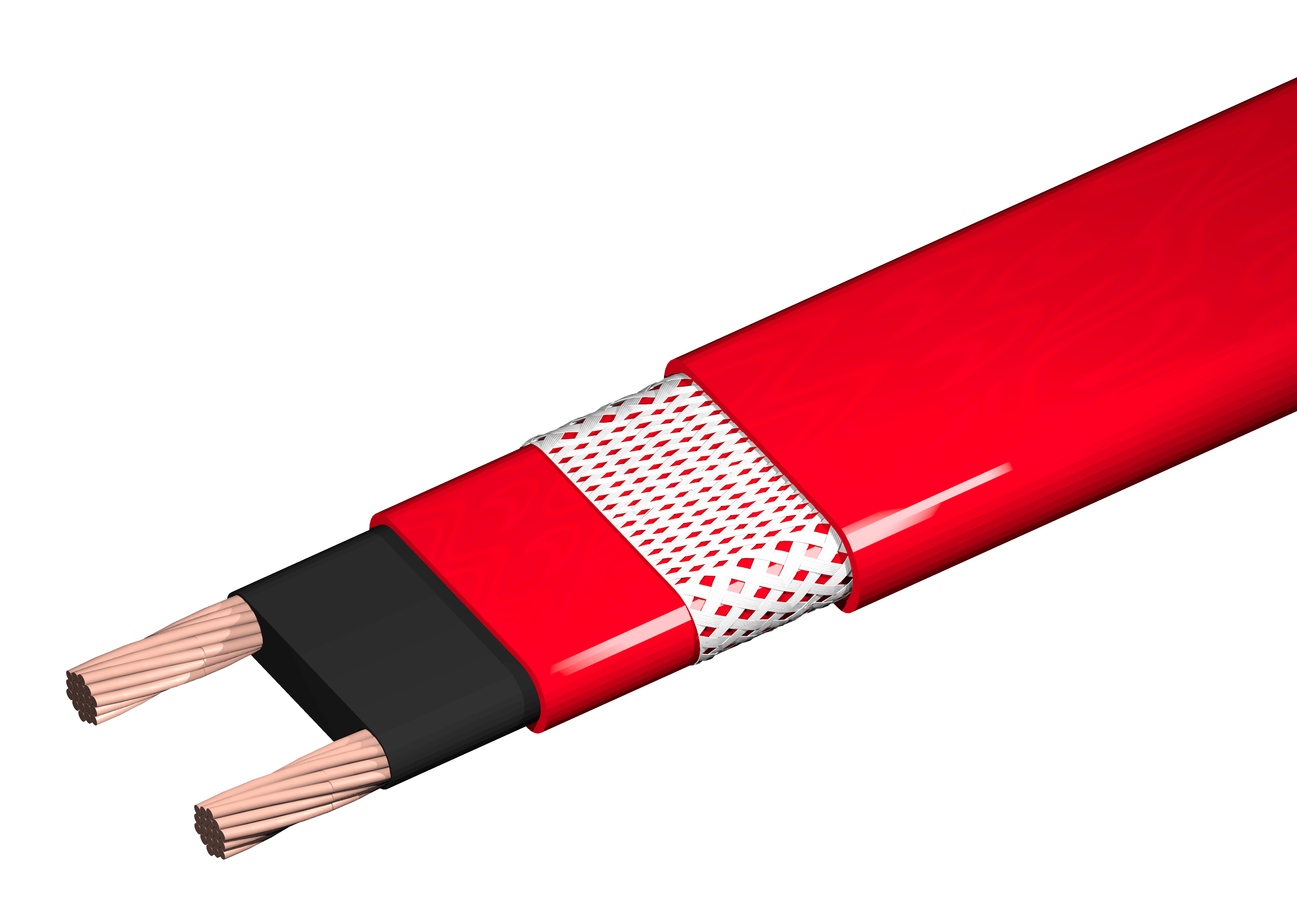

HTV-series
HTV-series self-regulating heating cable provides a solution for pipe, vessel, valve, tank temperature maintaince and freeze-protection. Maximal intermittent temperature up to 200°C.
Voltage
110 – 270 V~
Power Output
10, 17, 26, 33, 40, 50, 65 W/m
Max. maintaince temp.
120°C
Max. intermittent temp.
200°C (1000 hours)
Outer sheath
Flouropolymer (-CT)
Conductor square
1.3 mm2
Dimensions
4.6 x 12.9 mm
Temperature class
T3
